Parallel Windows

WINKRAFT Parallel Windows are designed for maximum ventilation and ideal for staircases, landings and offices

Product: Parallel Windows
Type: uPVC window system
Profiles: ENCRAFT India
Max Sash Width: 2000 mm
Max Sash Height: 2000 mm
Sash Weight Capacity: 200 kg
Typical applications: Large openings, Staircases, Corridors, Offices
Finish options: 11 shades

About Parallel Windows

WINKRAFT Parallel Windows are designed for maximum ventilation and ideal for staircases, landings and offices. With a maximum sash size of 2 meters (6.6 feet) wide and 2 meters (6.6 feet) tall it caters for large openings giving plenty of light to the area. With a weight carrying capacity of 200kg per sash the glazing options are almost limitless. There is a facility to incorporate a security grill or blinds for security or privacy.

Where it is specified

Parallel Windows are typically used in large openings, staircases, corridors, offices. Browse by room:

Specifications

Dimensions

Dimensions specifications for Parallel Windows
Max Sash Width	2000 mm
Max Sash Height	2000 mm

Performance

Performance specifications for Parallel Windows
Sash Weight Capacity	200 kg

Range performance

Winkraft range performance credentials
Glazing	4 mm single to 36 mm triple
Wind load	3000 Pa (245 km/hr)
Sound reduction	Up to 40 dB
Thermal	0.8 W/m²K (TwinSash DGU)
Profiles	ENCRAFT India · ISO 9001:2015
Guarantee	10 years on profile

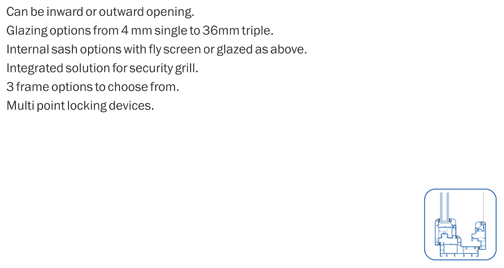

Profile section

Finishes

Parallel Windows in nine production shades

All finishes

Dark Oak
Golden Oak
Walnut
Mahogany
Rustic Oak
Anthracite Grey
Black Smooth
Flemish Gold
Smooth Grey
Rose Gold
Brush Gold

Parallel Windows — questions we are asked

What are Parallel Windows?

WINKRAFT Parallel Windows are designed for maximum ventilation and ideal for staircases, landings and offices.

What is the maximum size for Parallel Windows?

Parallel Windows can be manufactured up to 2000 mm wide and up to 2000 mm tall. Larger openings are handled by combining units into a screen.

How much weight can a Parallel Window sash carry?

Each sash accepts up to 200 kg, which governs the glazing build-up the system can take.

Where are Parallel Windows typically used?

Parallel Windows are specified for large openings, staircases, corridors, offices.

What finishes are available for Parallel Windows?

Parallel Windows are available in nine production shades: Dark Oak, Golden Oak, Walnut, Mahogany, Rustic Oak, Anthracite Grey, Black Smooth, Flemish Gold, Smooth Grey, Rose Gold, Brush Gold. Woodgrain, solid and metallic options are all offered.

What glazing can Parallel Windows take?

Glazing runs from 4 mm single to 36 mm triple, in heat, sound and safety configurations. Winkraft systems achieve up to 40 dB sound reduction and a 3000 Pascal wind load rating (equivalent to 245 km/hr).

Who manufactures Parallel Windows?

Parallel Windows are manufactured by Winkraft (Ram Mohan Polypack Pvt. Ltd.) in Lucknow, established 2011. Winkraft manufactures rather than trades, and installs with its own site teams. Profiles are ENCRAFT India, ISO 9001:2015 and ISO 14001:2015 certified, with a 10-year profile guarantee.
