Casement Windows

WINKRAFT Casement Window range is designed to provide the maximum flexibility for fabricators and clients alike

Product: Casement Windows
Type: uPVC window system
Profiles: ENCRAFT India
Profile Depth: 42 / 62 mm
Typical applications: Premium residences, Hotels
Finish options: 11 shades
Glazing: 4 mm single to 36 mm triple
Profile guarantee: 10 years

About Casement Windows

WINKRAFT Casement Window range is designed to provide the maximum flexibility for fabricators and clients alike. The system is based on two profile depths - 42 and 62 mm and was designed to facilitate maximum application coverage with the minimum of profile sections providing fabricators and clients at the same time with the ideal range of products to suit any window casement window program or building type in the fast growing construction industry.

Where it is specified

Casement Windows are typically used in premium residences, hotels. Browse by room:

Bedroom

Specifications

Dimensions

Dimensions specifications for Casement Windows
Profile Depth	42 / 62 mm

Range performance

Winkraft range performance credentials
Glazing	4 mm single to 36 mm triple
Wind load	3000 Pa (245 km/hr)
Sound reduction	Up to 40 dB
Thermal	0.8 W/m²K (TwinSash DGU)
Profiles	ENCRAFT India · ISO 9001:2015
Guarantee	10 years on profile

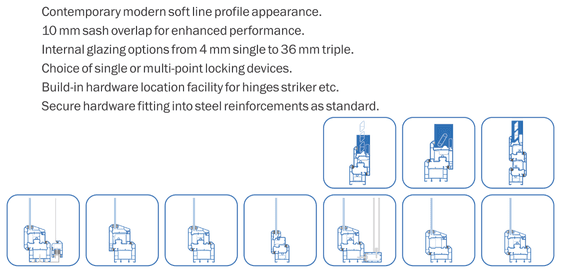

Profile section

Finishes

Casement Windows in nine production shades

All finishes

Dark Oak
Golden Oak
Walnut
Mahogany
Rustic Oak
Anthracite Grey
Black Smooth
Flemish Gold
Smooth Grey
Rose Gold
Brush Gold

Matching system

Also available as Casement Doors

The same operating mechanism in the door range — commonly specified together so an elevation reads as one system.

View Casement Doors

Casement Windows — questions we are asked

What are Casement Windows?

WINKRAFT Casement Window range is designed to provide the maximum flexibility for fabricators and clients alike.

What profile depth do Casement Windows use?

Casement Windows are built on 42 / 62 mm profile depths. Profile depth determines the glazing thickness the system can carry and its thermal performance.

Where are Casement Windows typically used?

Casement Windows are specified for premium residences, hotels.

What finishes are available for Casement Windows?

Casement Windows are available in nine production shades: Dark Oak, Golden Oak, Walnut, Mahogany, Rustic Oak, Anthracite Grey, Black Smooth, Flemish Gold, Smooth Grey, Rose Gold, Brush Gold. Woodgrain, solid and metallic options are all offered.

What glazing can Casement Windows take?

Glazing runs from 4 mm single to 36 mm triple, in heat, sound and safety configurations. Winkraft systems achieve up to 40 dB sound reduction and a 3000 Pascal wind load rating (equivalent to 245 km/hr).

Who manufactures Casement Windows?

Casement Windows are manufactured by Winkraft (Ram Mohan Polypack Pvt. Ltd.) in Lucknow, established 2011. Winkraft manufactures rather than trades, and installs with its own site teams. Profiles are ENCRAFT India, ISO 9001:2015 and ISO 14001:2015 certified, with a 10-year profile guarantee.
