Invisi Fold Windows

The ENFOLD System is designed to convert standard welded windows & doors into sliding/folding/swing systems

Product: Invisi Fold Windows
Type: uPVC window system
Profiles: ENCRAFT India
System: ENFOLD
Hinges: Invisible, or face-mounted fully adjustable 3D
Loading: Bottom loaded
Typical applications: Wide openings, Panel-by-panel movement
Finish options: 11 shades

About Invisi Fold Windows

The ENFOLD System is designed to convert standard welded windows & doors into sliding/folding/swing systems. ENFOLD is a unique alternative for 'concertina' 'fold & slide' or 'bi-fold' windows & doors which is based on movement of individual panels. It can be manufactured with invisible hinges showing only 1 or 2 handles (depending on style) also it can be manufactured alternatively with face mounted and fully adjustable 3D hinges. ENFOLD sliding panels are bottom loaded and will 'NOT' drop like conventional 'fold & slide' systems resulting in trouble free installations.

Specifications

Construction

Construction specifications for Invisi Fold Windows
System	ENFOLD
Hinges	Invisible, or face-mounted fully adjustable 3D

Performance

Performance specifications for Invisi Fold Windows
Loading	Bottom loaded

Range performance

Winkraft range performance credentials
Glazing	4 mm single to 36 mm triple
Wind load	3000 Pa (245 km/hr)
Sound reduction	Up to 40 dB
Thermal	0.8 W/m²K (TwinSash DGU)
Profiles	ENCRAFT India · ISO 9001:2015
Guarantee	10 years on profile

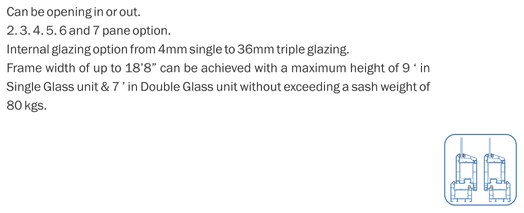

Profile section

Finishes

Invisi Fold Windows in nine production shades

All finishes

Dark Oak
Golden Oak
Walnut
Mahogany
Rustic Oak
Anthracite Grey
Black Smooth
Flemish Gold
Smooth Grey
Rose Gold
Brush Gold

Matching system

Also available as Fold & Slide Doors

The same operating mechanism in the door range — commonly specified together so an elevation reads as one system.

View Fold & Slide Doors

Invisi Fold Windows — questions we are asked

What are Invisi Fold Windows?

The ENFOLD System is designed to convert standard welded windows & doors into sliding/folding/swing systems.

Where are Invisi Fold Windows typically used?

Invisi Fold Windows are specified for wide openings, panel-by-panel movement.

What finishes are available for Invisi Fold Windows?

Invisi Fold Windows are available in nine production shades: Dark Oak, Golden Oak, Walnut, Mahogany, Rustic Oak, Anthracite Grey, Black Smooth, Flemish Gold, Smooth Grey, Rose Gold, Brush Gold. Woodgrain, solid and metallic options are all offered.

What glazing can Invisi Fold Windows take?

Glazing runs from 4 mm single to 36 mm triple, in heat, sound and safety configurations. Winkraft systems achieve up to 40 dB sound reduction and a 3000 Pascal wind load rating (equivalent to 245 km/hr).

Who manufactures Invisi Fold Windows?

Invisi Fold Windows are manufactured by Winkraft (Ram Mohan Polypack Pvt. Ltd.) in Lucknow, established 2011. Winkraft manufactures rather than trades, and installs with its own site teams. Profiles are ENCRAFT India, ISO 9001:2015 and ISO 14001:2015 certified, with a 10-year profile guarantee.
